Compact
A compact wallbox that leaves no room for compromise. Gain full control of the energy you use.
For your daily recharges
Smart
Schedule and monitor charging cycles from the Gali Link app on your smartphone. With the Power Meter, the power adapts to your household’s consumption on its own: no more tripped meter.
Integration without limits
Comfort

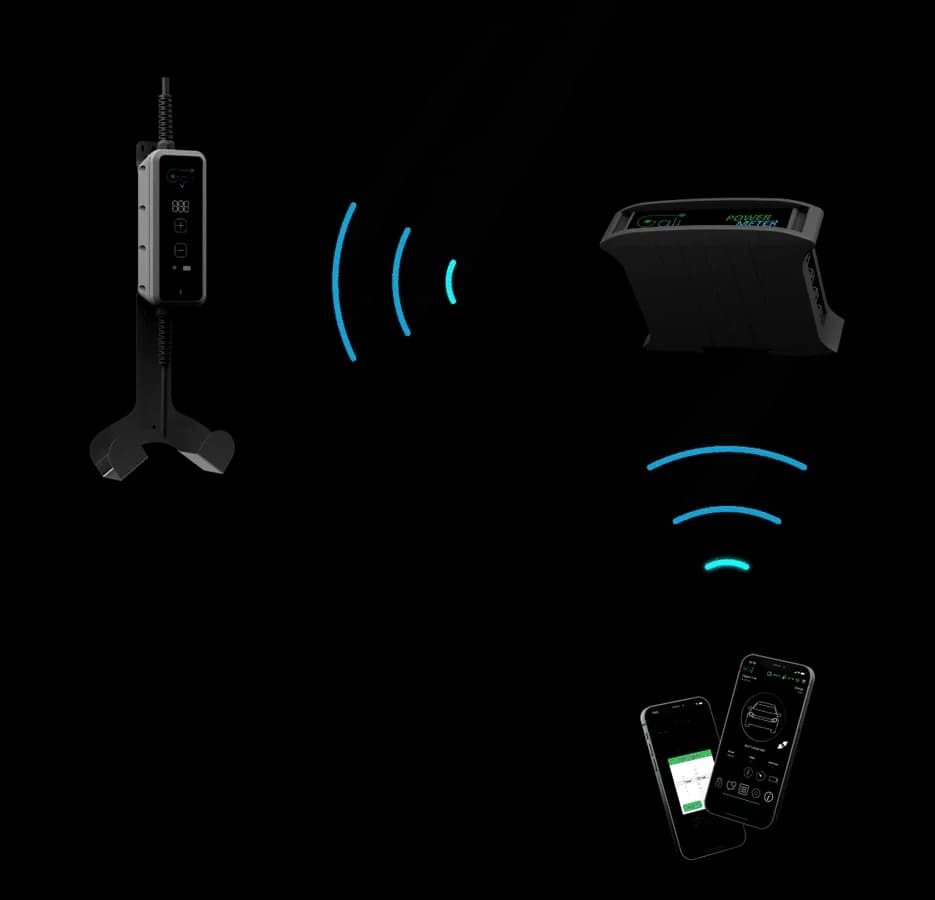

Your GALI BC integrates with the monitoring and power control system GALI POWER METER. Both devices are optimized to communicate in a continuous way relative to the value of power used and read by the meter and the one produced by the photovoltaic system, in order to be able to manage in a smart way the charging of the vehicles connected to the power supply.
Your GALI by RM™
Unlimited customisations
GALI BC can be customized. Furthermore we offer a full customising service with the colors you prefer: either contact us and tell us what you need or click on the button below to buy GALI by RM™.
Black & white
Standard
Blue
Optional
Red
Optional
Silver
Optional
Optional
Carry bag
GSE incentives
Learn moreWith the single-phase versions of GALI BC you qualify for the GSE scheme for a free meter power upgrade from 3 to 6 kW in the F3 time band. The device can also switch to the higher power automatically.
Smart and sustainable
The most compact wallbox
Choose the solution that suits your needs the most, whether to be installed in your home or in your company's premises. Thanks to a meticulous, completely Italy-based control over the production process, GALI by RM™ is sustainable for real.
The top priority since the start, the extreme technical quality
Security and reliability
GALI by RM™’s products are made following the highest quality standards, arising from the years of experience in the electronics and EVR industry. Every device and system of our line is compliant to numerous technical rules, in order to guarantee the maximum security when using a reliable and lasting system, which preserves your vehicle and your home.
The flagship of our philosophy
Post-purchase assistance
The reliability of our products is reflected in our post-purchase assistance policy. Whether you purchased GALI by RM™ as a private or a distributor, we will be on your side in the settlement of any problem and we will help you to take care of your electric or hybrid car.
A specific focus on the treatment of our territory
All GALI by RM™ products are conceived, designed and assembled in Italy. Our effort in offering a green transition translates in a specific attention to production processes, choice of components and energy production, while valorising the territory that we call home.
Data sheet
General and mechanical requirements
- Charger
- AC
- Connector
- Type 2
- Charging mode
- Mode 3 - IEC 61851-1
- Size
- 250 x 100 x 80 mm
- Cable length
- 5 mt.
- Weight
- c.s. 5kg
- Level of protection
- IP55
- Operating temperature
- -25°C to +45°C
Electrical requirements
- Power line
- Single-phase / Three-phase
- Voltages
- 230 V / 400 V
- Maximum power
- 4.5 kW - 7.4 kW / 22 kW
- Maximum currents
- 19 A - 32 A / 32 A
Functional characteristics
- Security
- Differential Class B included
- Signaling
- LED display
- Lines of communications
- Wifi, Gali Link app, Power Meter WiFi, MID-approved meters
- Compliance
- CE - IEC61851-1 - IEC62196 - UL94 - IEC60695 - EN60335
Optional
- Support bracket for wall installation.
- Car side cable extension.
- Customer logo on front panel.
- Colour customisation (RAL) of the container (front panel excluded).
- Car side cable outlet with Type 1 connector.
