GALI B

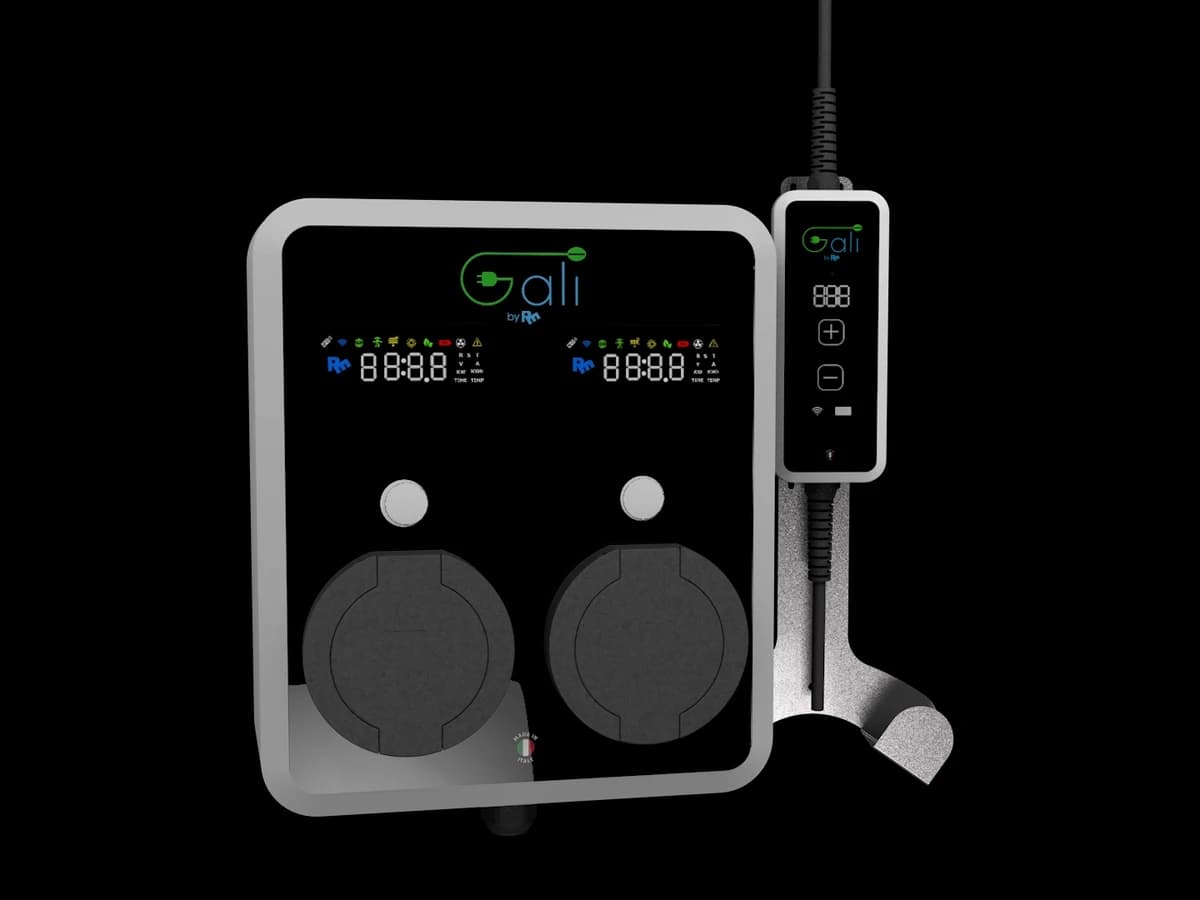

We have designed two options that will allow you to obtain the perfect system for your home, or office.
For your daily recharges
GALI BC
A compact wallbox that leaves no room for compromise. Gain full control of the energy you use.
Your GALI by RM™
GALI B
Choose the configuration that suits you best: soon you will be able to buy your GALI by RM™ directly online.

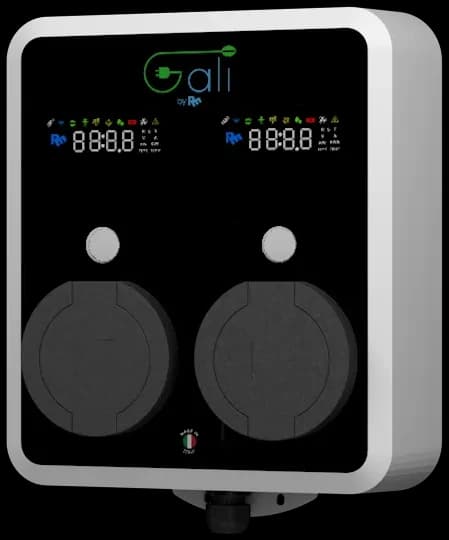

Variant 1
Double socket

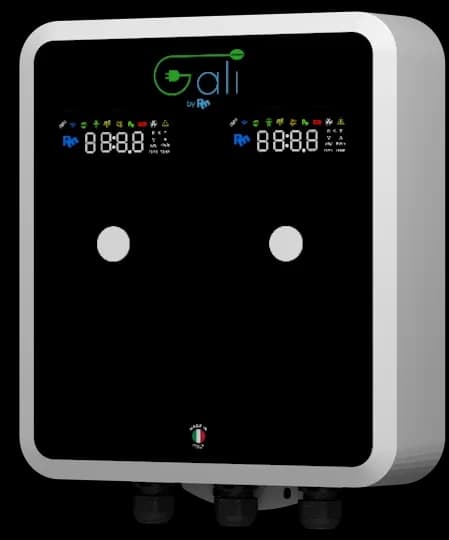

Variant 2
Double cable
Supplied
Charging cable
Optional
Cable with double T2 M/F connector from 5 mt.
Your GALI by RM™

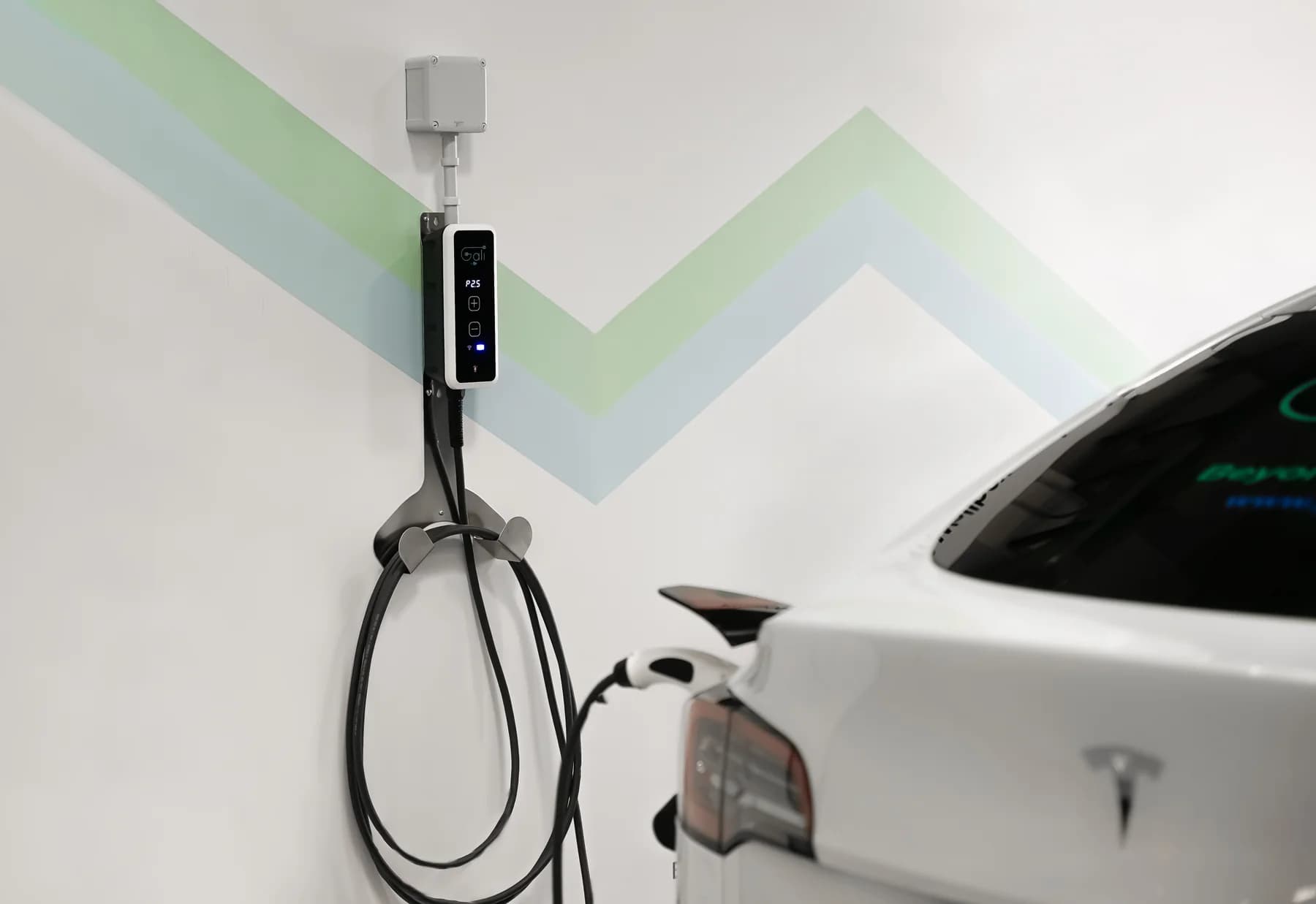

GALI BC
GALI BC can be customized. Furthermore we offer a full customising service with the colors you prefer: either contact us and tell us what you need or click on the button below to buy GALI by RM™.
Black & white
Blue
Red
Silver
Supplied
Charging cable
Optional
Carry bag
GSE incentives
Learn moreWith the single-phase versions of GALI BC and GALI B you qualify for the GSE scheme for a free meter power upgrade from 3 to 6 kW in the F3 time band. The devices can also switch to the higher power automatically.
Integration without limits
Comfort

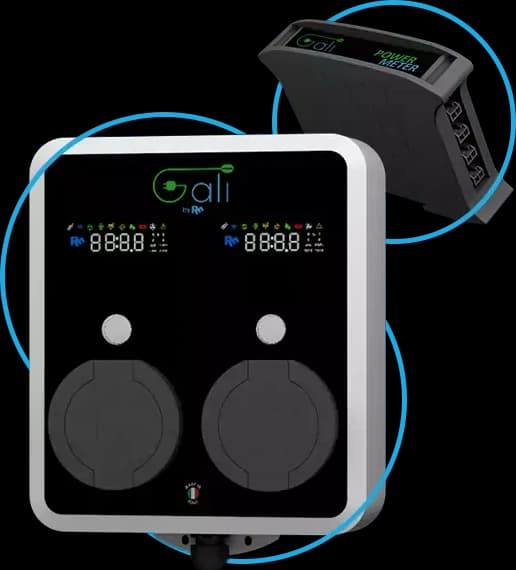

Your GALI B offers the possibility to be integrated with the monitoring and power control system GALI POWER METER. Both devices are optimized to communicate in a continuous way relative to the value of power used and read by the meter and the one produced by the photovoltaic system, in order to be able to manage in a smart way the charging of the vehicles connected to the power supply.
For any kind of installation
Shared use
GALI B wallboxes use RFiD technology, which, if integrated with the web interface for monitoring and managing the charging cycles, will allow you to install multi-user systems. Allow the tenants of your building, or the employees of your office, to benefit from a comfortable charger, which tracks the amount of energy used by every user to simplify the accounting.
Coming soon
In step with the future
The OCPP protocol will be implemented in GALI B, which allows secure and centralized remote management of multiple recharging points, ensuring compliance with the new standard that is imposing itself internationally. The evolution in the world of electric charging is very fast, and GALI by RM™ will always be at the forefront to innovate.
Smart and sustainable
The most compact wallbox
Choose the solution that suits your needs the most, whether to be installed in your home or in your company's premises. Thanks to a meticulous, completely Italy-based control over the production process, GALI by RM™ is sustainable for real.
The top priority since the start, the extreme technical quality
Security and reliability
GALI by RM™’s products are made following the highest quality standards, arising from the years of experience in the electronics and EVR industry. Every device and system of our line is compliant to numerous technical rules, in order to guarantee the maximum security when using a reliable and lasting system, which preserves your vehicle and your home.
The flagship of our philosophy
Post-purchase assistance
The reliability of our products is reflected in our post-purchase assistance policy. Whether you purchased GALI by RM™ as a private or a distributor, we will be on your side in the settlement of any problem and we will help you to take care of your electric or hybrid car.
A specific focus on the treatment of our territory
All GALI by RM™ products are conceived, designed and assembled in Italy. Our effort in offering a green transition translates in a specific attention to production processes, choice of components and energy production, while valorising the territory that we call home.
Data sheet
GALI B
General and mechanical requirements
- Charger
- AC
- Connector
- 2 x Type 2
- Charging mode
- Mode 3 - IEC 61851-1
- Size
- 325 x 265 x 120 mm
- Cable length
- 5 mt.
- Weight
- approx. 5 kg to 10 kg
- Level of protection
- IP54
- Operating temperature
- -25°C to +45°C
Electrical requirements
- Power line
- Single-phase / Three-phase
- Voltages
- 230 V / 400 V
- Maximum power
- 7.4 kW / 22 kW
- Maximum currents
- 32 A (each socket)
Functional characteristics
- Security
- Differential Class B included
- Signaling
- LED display
- RFiD reader
- Standard
- Lines of communications
- Wifi, web interface, Power Meter WiFi, MID-approved meters
- Compliance
- CE - IEC61851-1 - IEC62196 - UL94 - IEC60695 - EN60335
Optional
- Cable with double T2 M/F connector from 5 mt.
- Customer logo on front panel.
Data sheet
GALI BC
General and mechanical requirements
- Charger
- AC
- Connector
- Type 2
- Charging mode
- Mode 3 - IEC 61851-1
- Size
- 250 x 100 x 80 mm
- Cable length
- 5 mt.
- Weight
- c.s. 5kg
- Level of protection
- IP55
- Operating temperature
- -25°C to +45°C
Electrical requirements
- Power line
- Single-phase / Three-phase
- Voltages
- 230 V / 400 V
- Maximum power
- 4.5 kW - 7.4 kW / 22 kW
- Maximum currents
- 19 A - 32 A / 32 A
Functional characteristics
- Security
- Differential Class B included
- Signaling
- LED display
- Lines of communications
- Wifi, web interface, Power Meter WiFi, MID-approved meters
- Compliance
- CE - IEC61851-1 - IEC62196 - UL94 - IEC60695 - EN60335
Optional
- Support bracket for wall installation.
- Car side cable extension.
- Customer logo on front panel.
- Colour customisation (RAL) of the container (front panel excluded).
- Car side cable outlet with Type 1 connector.
